Audit 9000

The Audit 9000 is an ultrasonic corrosion thickness gauge and is available in four models to suit budget and application.

Advantages of the Audit 9000 include:

Field upgradeable software options including live waveform, datalogger or both
Coating Thickness Software option
Vibrate Alarm
Encoder option
Accessory Mount

Overview

The Audit 9000 represents our most advanced thickness gauge ever, offering a 3.5”, high resolution, sunlight readable colour display with live A-Scan, echo to echo to ignore coatings. A wide variety of contact, delay line and immersion probes, are available, from 1-20 MHz as default, with the capability of creating custom and stored application setups. B-Scan and Datalogger functions are optional, with up to 32GB of SD card memory and can be interfaced to Microsoft Excel. The vibrate on alarm feature is a great feature for when working in noisy environments.

Download our brochure:
Audit 9000_Iss 2.pdf (487.8KB)

Stand

Carry case

Features

Simultaneous live colour A-Scan & thickness measurement display
3.5” sunlight readable colour display
Fast/Min and Fast/Max displays minimum, maximum or both simultaneously with actual thickness at 25 Hz
Compatible with a wide variety of standard single element transducers
Multiple language options
Datalogger interfaces with Microsoft Excel
Designed for IP67

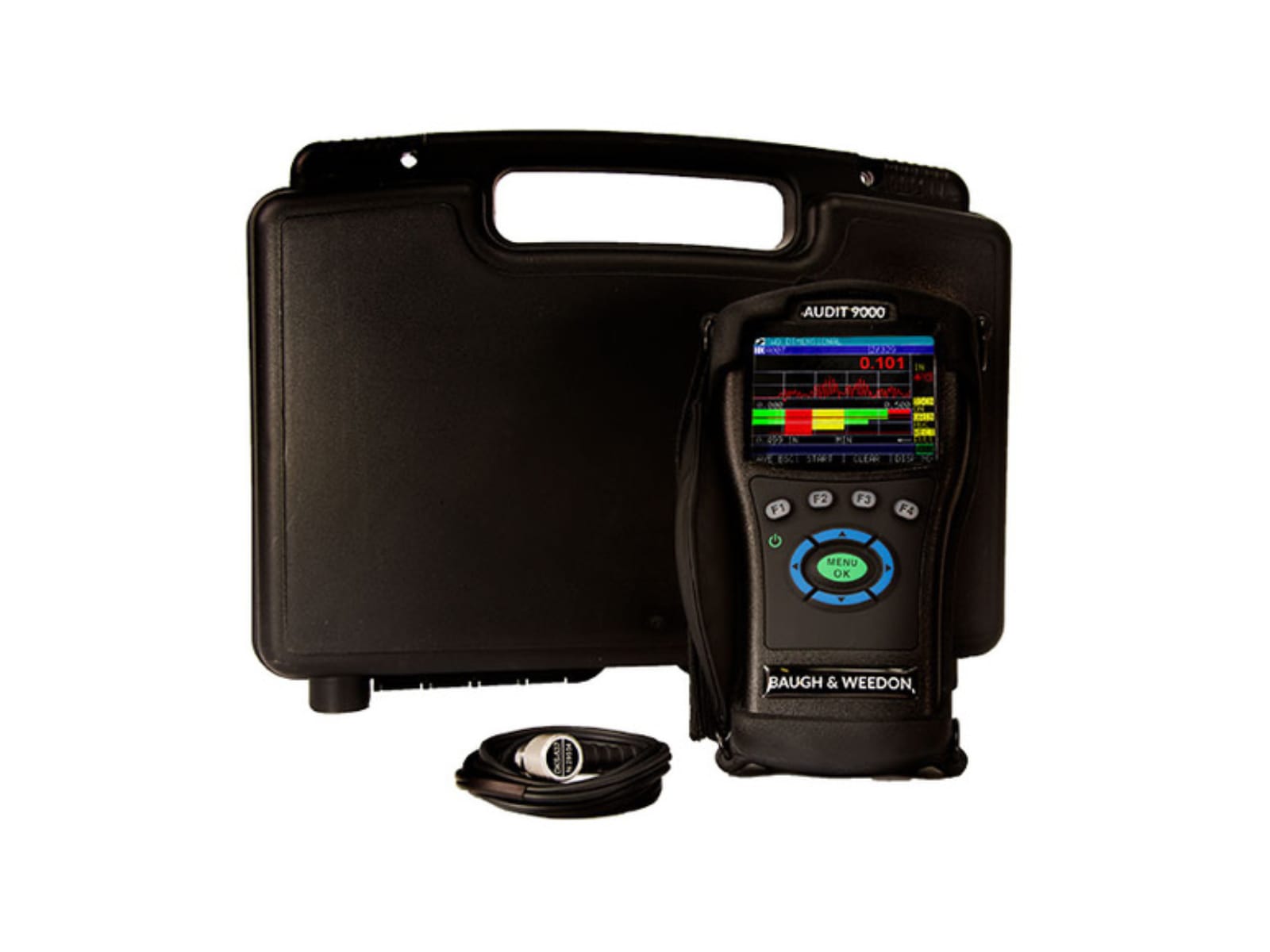

Standard Kit

Audit 9000
DKS-537 transducer (up to 5MHz)
LM-06A cable
Data XL interface program
USB cable
Charger adapter
Operator Manual
Carry Case
Ultrasonic Couplant Gel

Options

Model options:

Audit 9000 W
Standard features of Audit 9000 - plus a live colour A-Scan, with adjustable range, gain, blanks and rectification.

Audit 9000 DL
Standard features of Audit 9000 - plus B-Scan, an “unlimited” readings Datalogger, with export to excel options using the Data XL interface program or with on-board SD cards.

Audit 9000 DLW
Standard features of Audit9000 - plus combination of live colour waveform function (A-Scan) and the Datalogger functions.

Software Options:

Datalogger with B-scan
Live Waveform
Precision Mode
Oxide scale
Coating Thickness

Hardware Options:

EZ Scan B-Scan Encoder
Bluetooth
Alkaline battery tray
Rubber boot
Magnetic pipe stand

Specification

Size	Length 184mm x Width 101.6mm x Height 50.8mm (7.25” x 4.00” x 2.00”)
Weight	0.52kg (1.15 lbs) with internal Li-Ion battery, 0.45kg (1.0 lb) with optional Alkaline tray- 3 AA batteries
Display	3.5” high resolution colour display, 320 x 240 pixels (1/4 VGA), sunlight readable, including multiple colour choices
Backlight	Light Emitting Diode (LED) backlight. Includes variable light intensity, indoor and outdoor modes.
Operating Temperature	-20°C to 50°C (-4°F to 122°F)
Package	Designed for IP67 rating, custom, splash-proof, high impact plastic. Illuminating rubber keypad for go/no-go testing
Transducer Connector Type	Lemo 00 (x2)
Bandwidth	0.5-30 MHz (-3dB)
Measurement Rate	4 Hz or 25 Hz
Pulser	150V, Square Wave
Range	Thickness range depends on gauge type, probe selection and material conditions. Typical range in corrosion mode, 0.508- 0.584mm (0.020”-23”).
Calibration	Cal zero, Cal velocity, Two-point calibration or Auto Calibration delivers two-point calibration using a 5-step test block
Material Velocity Range	0.508-18.699 mm/ uS (0.0200 in/usec- 0.7362 in/uS)
Batteries	Standard 3.7 V Li Ion internally rechargeable battery (11-27 hours - standard mode of 4Hz. and 74%brightness: 27 hour continuous operation, Fast mode at 25Hz., continuous measurements in echo to echo mode: 11 Hours or optional alkaline tray for 3 AA batteries
Data XL	Interface program to send and receive stored readings, latest firmware and application set up files as two way communication from ECHO to computer (Excel)
USB	USB 2.0
Stored Set-ups	Storage and recall of calibration and set up files (up to 5,000)
Memory	Internal memory standard on all models. For Datalogger models 2GB micro SD card standard, expandable to 32GB
Gain	Initial gain, final gain and slope. 20-90 db in .1 db increments
Zoom	Automatically centres echos in the centre of the display independent of material thickness
Units	English, Metric, Microseconds
Temperature Correction	Software to correct for varying sound speed as a function of entered temperature
Languages	English, French, German, Spanish, Italian, Russian, Czech, Finnish, Chinese, Japanese, Hungarian
Fats Min./max.	Displays min, max or both simultaneously with actual thickness at 25 Hz.
Alarms	Gauge vibrates and beeps. Display changes colour based on alarm condition
Transducers	Single, delay lines, contact, immersion
Measurement Types	Main bang to first backwall echo, echo to echo and velocity mode (displays acoustic sound speed based on entered thickness)
Freeze Mode	Direct access to freeze display (ideal for high temperature applications)
Hold Mode	Holds display to retain last thickness reading
Warranty	Limited 2 year warranty under normal use on parts and labour for gauge.
Shut Off	Selectable auto shut off 1-31 minutes or never shut off
Differential Mode	Displays difference from actual thickness measurement in absolute or percentage of a user entered value.
Resolution	0.025mm or 0.254mm (0.001” or 0.010”) as corrosion gauge and 0.025mm (0.001”)
Units	Inches, Millimetres and Microseconds
Transport Case	Hard Plastic with high density moulded foam cut out for gauge and most accessories.
Certifications	CE certified, RHOS compliant, designed for IP67
Accessory Mount	Audit 9000 includes a 1/4x20 standard connection point on the back of the unit to allow for a multitude of accessories including a magnetic pipe attachment and a Gorilla Pod
Standard Inclusions	Audit 9000 series ultrasonic thickness gauge, DKS-537, transducer 5 Mhz., LM-06Â cable, 2oz bottle of couplant, operation manual, Data XL interface program, USB cable, Charger Adapter, Transport Case *A transducer is included with each model.
Software Options	Datalogger with B-scan, Live Waveform, Precision Mode, Oxide scale, Coating Thickness
Hardware Options	EZ Scan B-Scan Encoder, Bluetooth, Alkaline battery tray, rubber boot.
