MagnaCheck 4D
The MagnaCheck 4D is the latest advancement in magnetic field strength measurement, designed to offer unparalleled accuracy and versatility in Magnetic Particle Inspection (MPI).
Building on the legacy of its predecessors, the MagnaCheck 4D introduces several new features aimed at enhancing the inspection process.
Key innovations include the Shot Timer Mode for precise magnetising shot duration, the Waveform Mode for detailed waveform analysis, and the new Pie Gauge feature, which provides intuitive directionality for magnetic fields and expected indications. With automatic scaling, multi-axis sensitivity, and improved probe orientation capabilities, the MagnaCheck 4D ensures reliable results for even the most complex MPI tests, making it an indispensable tool for professionals in the field.
Overview
The MagnaCheck gauges are developed to be easy to use, ergonomic and are lightweight at 350g (0.77lbs). The standard 1D probe can up to 1000 Gauss, and the 3D probe up to 2000 Gauss; until of measurement can be in Gauss, mTsela and Ka/m. Sensor calibration is stored digitally in the probe with a measurement accuracy of 1%.
Download our brochure:
MagnaCheck 4D_Iss 2 .pdf (731.9KB)

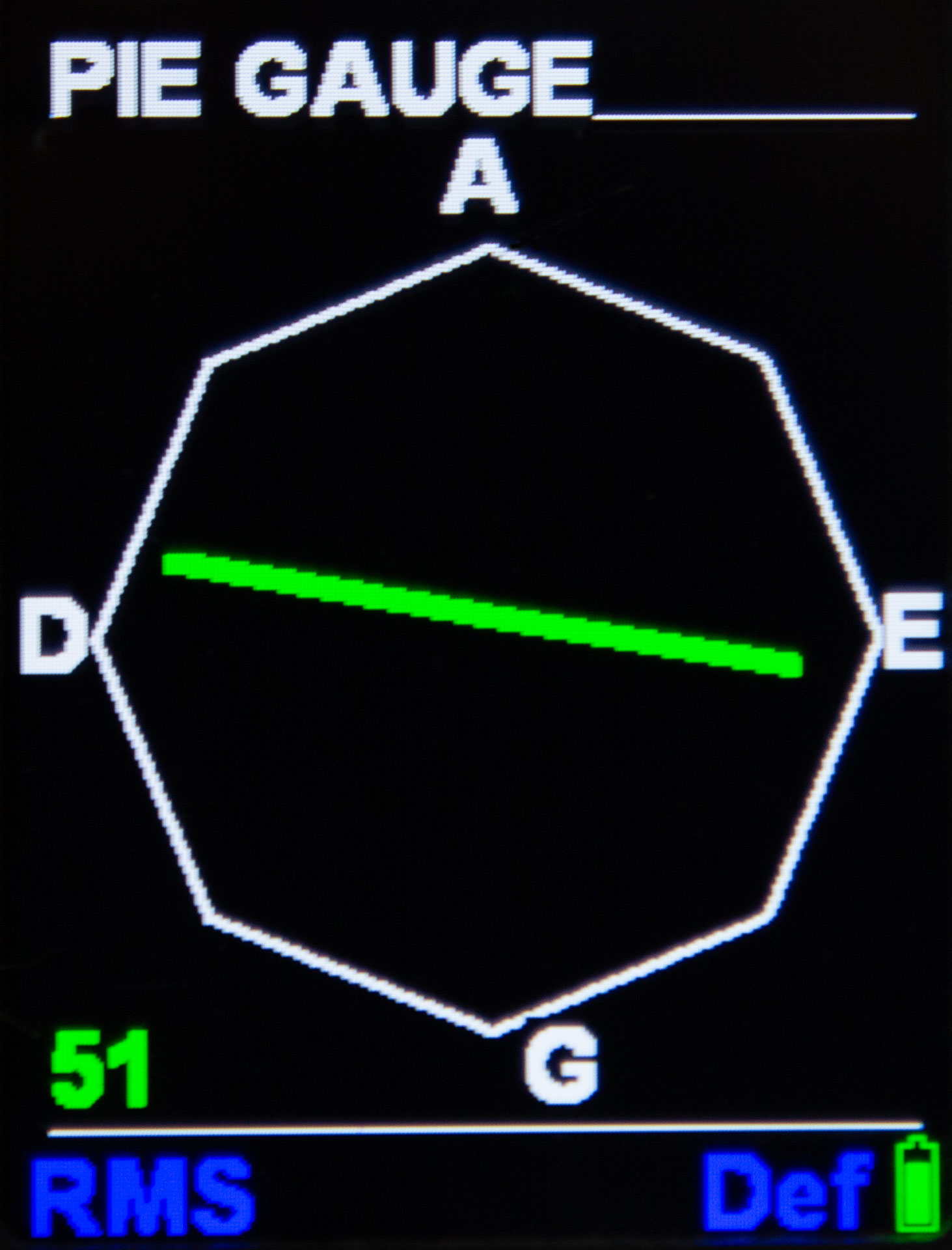

Pie Gauge Colour Indicator - "sweet Spot" for MPI

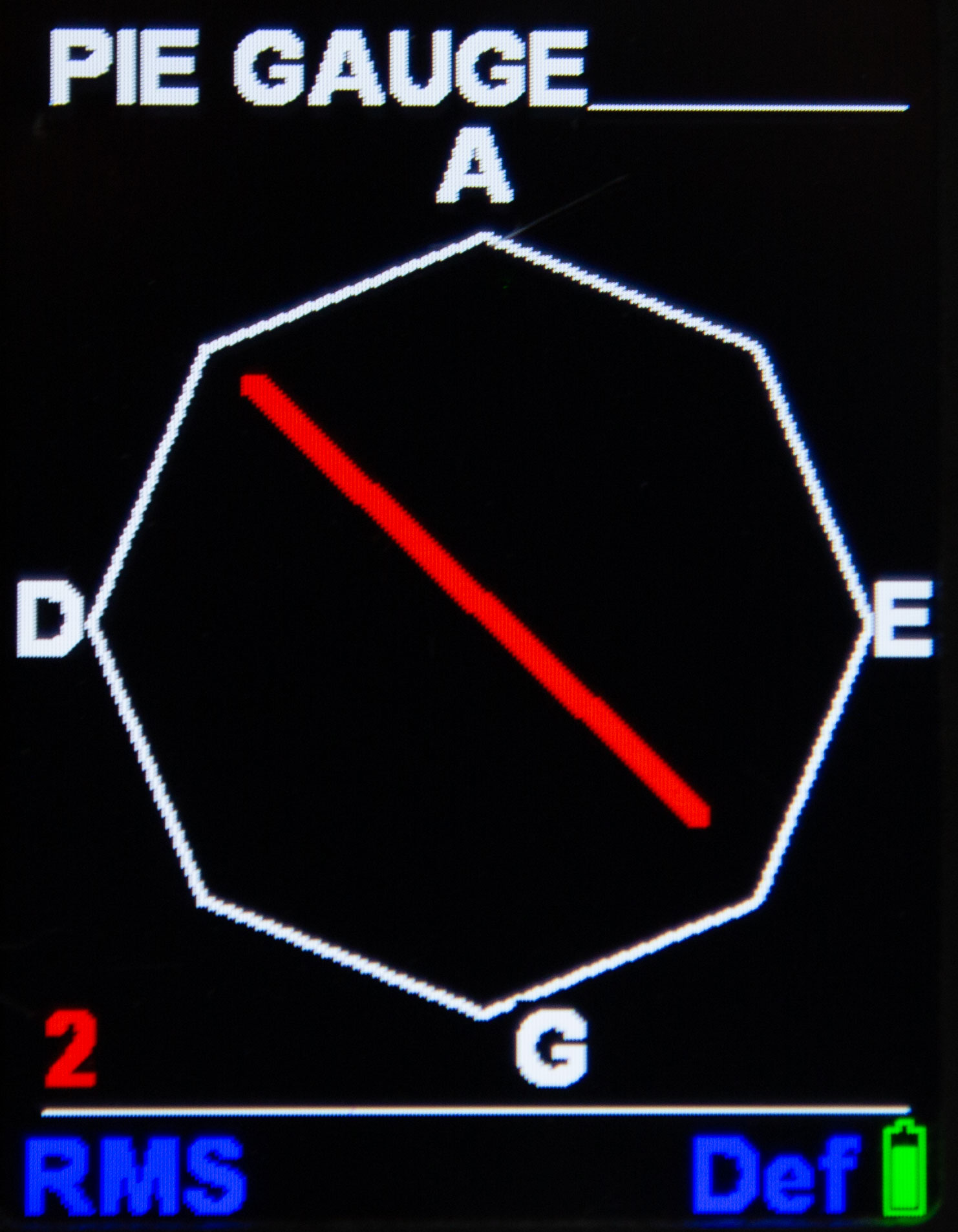

Pie Gauge Colour Indicator - Red

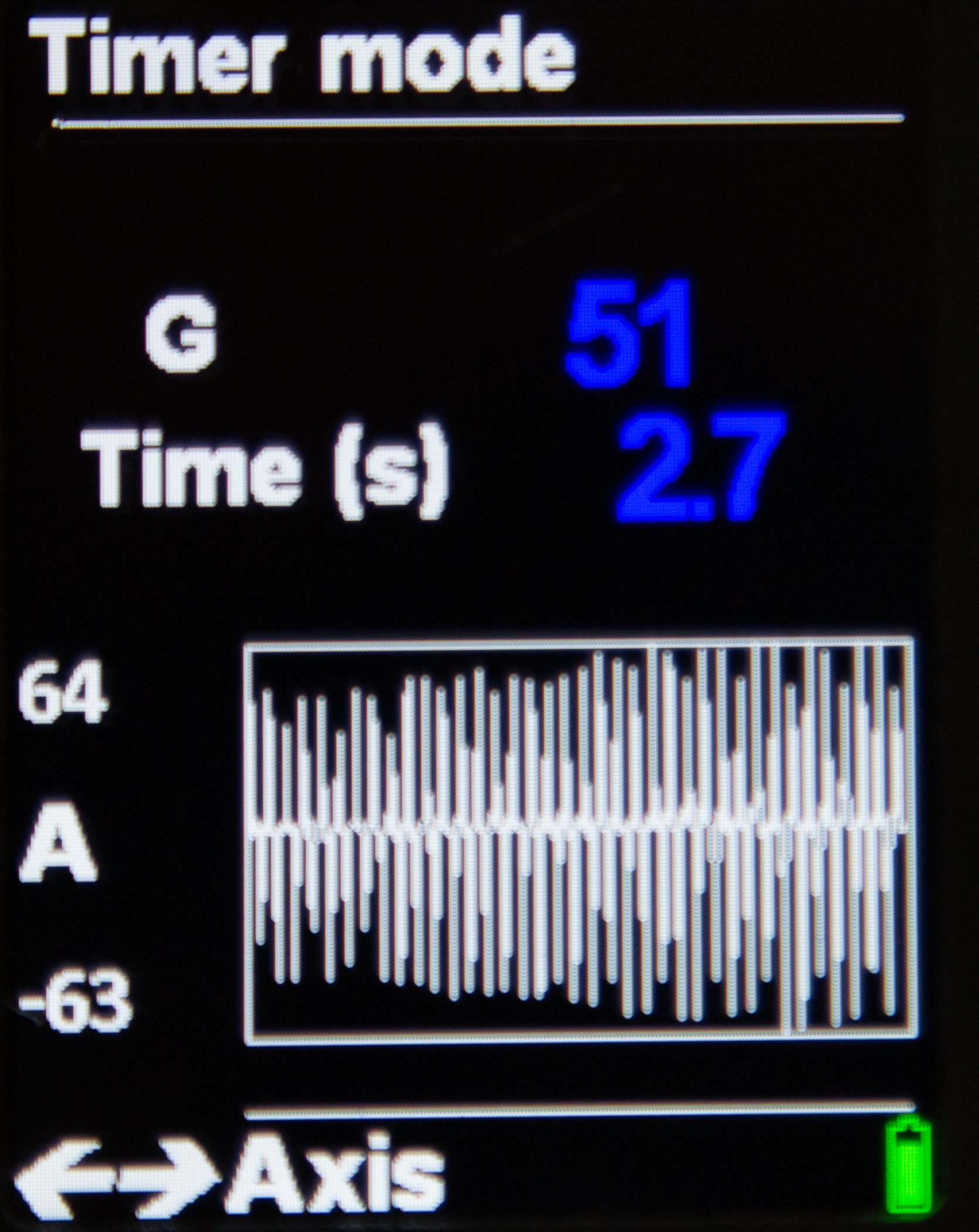

MagnaCheck 4D Shot Timer Mode

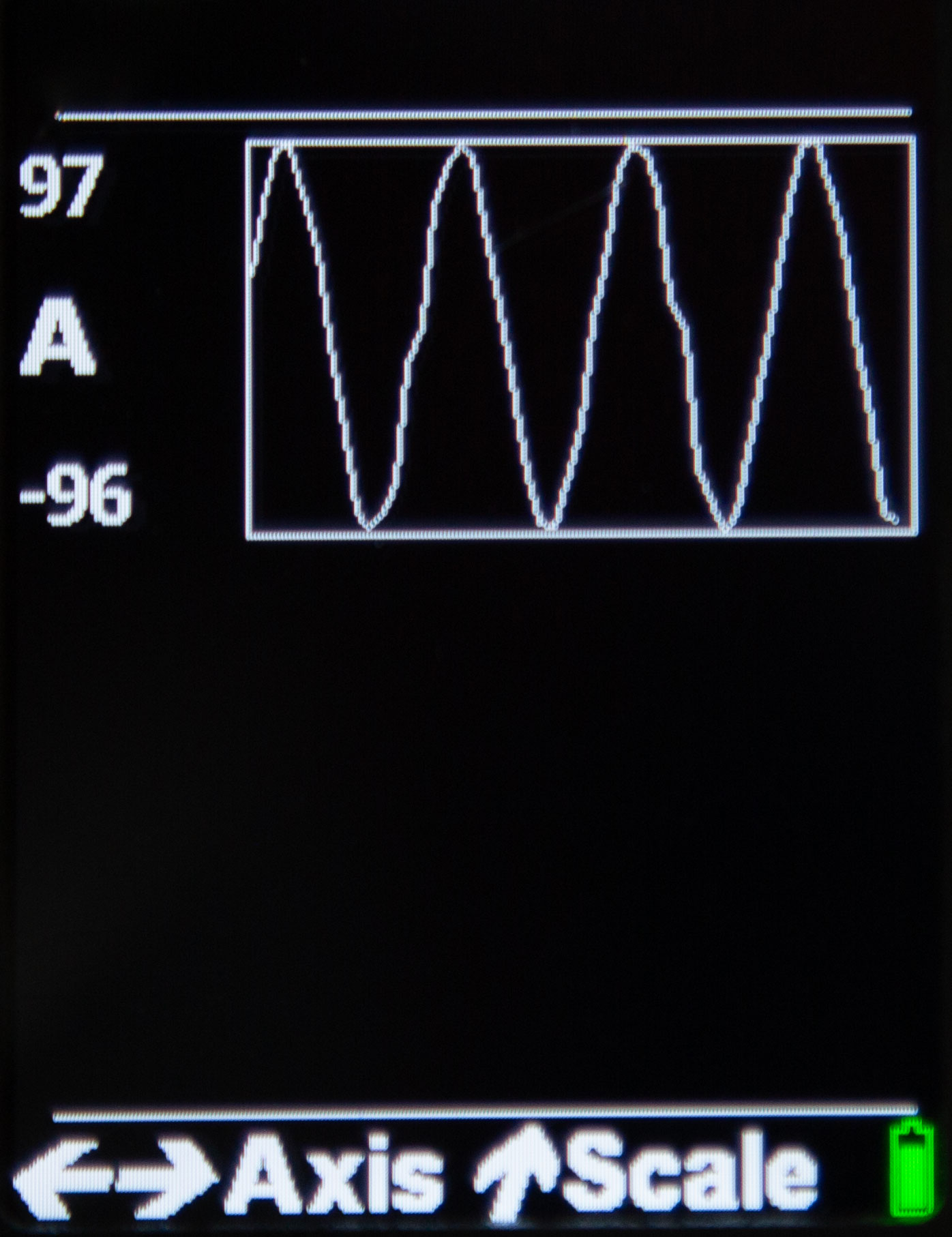

Waveform Mode
Features
- Unique 4D probe with Auto-Recognition
- Battery powers up to 10 hours continuous use
- Pie Gauge Feature
- On-board Shot Timer
- Waveforms Display
- Field Direction Display
- True RMS for Thyristor switched fields
- 70 samples per second
- The MagnaCheck is supplied with a comprehensive 12-month warranty
Standard Kit
- MagnaCheck 4D Gauge
- 4D Probe
- Null Pot
- Blue Rubber Boot
- 2 x Non-Rechargeable AA Batteries
- Carry Case
- Quick Reference Guide
- MagnaCheck 4D Manual
Specification
| 3D Probe | |
| Measurement range | To 2000 Gauss |
| Units | Gauss, mTesla, Ka/m, A/cm |
| Measurement modes | DC, AC peak, true RMS |
| MPI bench support | True RMS for thyristor switched fields |
| Peak hold mode | Off, 1, 2, 5 and 10 seconds |
| Measurement sample rate | 70 samples/second |
| Measurement resolution | 0.16 Gauss |
| Probe types | 4D Auto Recognition |
| Measurement accuracy | +/-1% |
| Standards compliance | ASTM E1444/1444M-16 and EN ISO 9934-3 |
| Zeroing | Manual zero with null pot supplied |
| Display type | Colour LCD with selectable backlight |
| Display size and resolution | 70mm (2.8”) 320x240 pixels |
| Power | 2 x 1.5V AA batteries |
| Typical battery life | In excess of 10 hrs continuous use |
| Instrument dimensions | 163mm (6.4")(h) x 80mm (3")(w) x 25mm (1")(d) With rubber boot: 168mm (6.6") (h) x 85mm (3.3” )(w) x 30mm (1.2”)(d) |
| Instrument weight | 350g (0.77lb) including batteries |
