Magnetic Particle Inspection
LumaFlux 4D

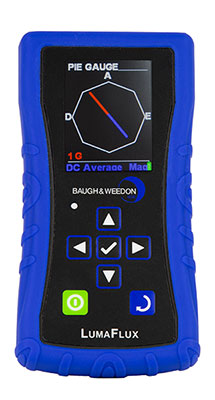

The LumaFlux 4D meter from Baugh & Weedon expands on the popular 3D model which combined a Dual UV / White Light Meter and Tangential Field Strength Meter in one rugged Instrumentation package.
Now with additional operational modes including:
- White Light Meter
- UV Light Meter
- Shot Timer
- Pie Gauge
- Display of Magnetic Waveform
Overview
Now the LumaFlux 4D has Six Operation Modes equivalent to the function of 6 different gauges and tools.
The new Pie Gauge simulation, enables operators to better visualise the magnetic field direction generated during MPI inspections.
Other new features include an MPI Shot Timer plus Waveform Imaging Mode, which displays an image view of the waveform shape generated in all three axes.
Advantages of the LumaFlux 4D include:
- “Six Meters in one”
- Cost savings over buying indivudal insteruments
- Lower calibration costs, versus the calibration of various meters
- Low lifetime cost of ownership
- Hot swappable sensors
Download our brochure:
LumaFlux 4D.pdf (427.6KB)
Features
- Auto Sensor recognition
- Interchangeable Sensors for different operational performance
- High Measurement Accuracy
- Rugged instrument housing
- Ergonomic Design with Protective Rubber Boot
- Unique 4D probe sensor
- Battery Life in excess of 10hrs continual use
- Comprehensive 12-month warranty

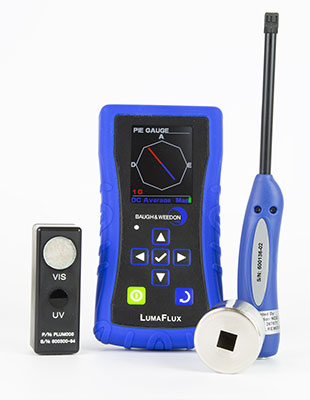

Standard Kit
- LumaFlux Instrument
- Dual UV & White Light Sensor
- 4D Tangential Field Strength Probe
- Probe Lead
- Metal Null Pot
- Kit Carry Case
Specification
Dual UV & White Light Meter Function
| Measurement Range: White Light | 5 lux to 10,000 lux |
|---|---|
| Measurement Range: UV Light | 0 to 10,000 uW/cm² |
| Resolution: White Light | 0.1 lux below 10 lux |
| Resolution: UV Light | 0.15 to 10μW/cm² (micro watts per square centimetre) |
| Units: White Light | Foot Candles (ft-c or fc or lm/ft) or Lux |
| Units: UV Light | μW/cm² (micro watts per square centimetre) |
| Display | 70mm (2.8") 320 x 240 colour display. LCD with selectable backlight |
| Screen | 5 readings per second |
| Conversion rate | 100 ms |
| Resolution | Up to 0.1 Lux & 0.1 μW/cm² (configurable) |
| Dimensions | 163mm (6.4") (h) x 80mm (3") (w) x 25mm (1.0") (d) With rubber boot: 168mm (6.6”) (h) x 85mm (3.3”) (w) x 30mm (1.2”) (d) |
| Weight | 350g (0.77lbs) including batteries |
| Power | 2 x 1.5V AA Alkaline batteries |
| PC Connectivity | USB or mains charging capabilities |
| IP Standard | IP54 |
| Resolution | Adjustable in Menu system |
| Overall Accuracy | +/- 3% measured against primary standard |
| Temperature Co-efficient | less than +/- 0.01%/C (0 to 50°C) |
| Irradiance Range | UV-A 0-10000 μW/cm² Visible: 0 -10,000 lux |
| Spectral Range | UV-A 320-400nm, Visible 460-680nm |
Tangential Field Strength Meter Function
| Measurement Range | To 2000 Gauss |
|---|---|
| Units | Gauss, m Tesla, Ka/m |
| Frequency Range | 40Hz - 410Hz |
| Measurement Modes | DC, AC, Peak, True RMS |
| Peak Hold Mode | Off, 1, 2, 5 and 10 seconds |
| MPI Bench Support | True RMS for Thyristor switched fields |
| Measurement Sample Rate | 70 samples/second |
| Measurement Resolution | 0.16 Gauss |
| Measurement Accuracy | 1% |
| Probe Types | 4D Auto recognition |
| Sensor Calibration | Stored digitally in the probe |
| Standards Compliance | ASTM E1444/1444M-16 and EN ISO 9934-3 |
| Zeroing | Manual Zero with null pot (supplied) |
| Display Type | Colour LCD with selectable backlight |
| Display Size & Resolution | 70mm (2.8") 32- x 240 pixels |
| Power | 2 x 1.5V AA batteries |
| Typical battery life | In excess of 10 hours (continuous use) |
| Instrument Dimensions | 163mm (6.4”)(h) x 80mm (3”) (w) x 25mm (1.0”) (d) With rubber boot: 168mm (6.6") (h) x 85mm (3.3") (w) x 30mm(1.2") (d) |
