X-Ray

Dereo UP NDT

In NDT, image quality is key and therefore constant potential generators are a must. X-RIS have developed solutions in portable NDT have evolved beyond what has been in the market up until now.

Advantages of the Dereo UP include:

All X-RIS systems work across a brad scope of applications
Extremely portable and robust
High resolution X-Ray imaging

Overview

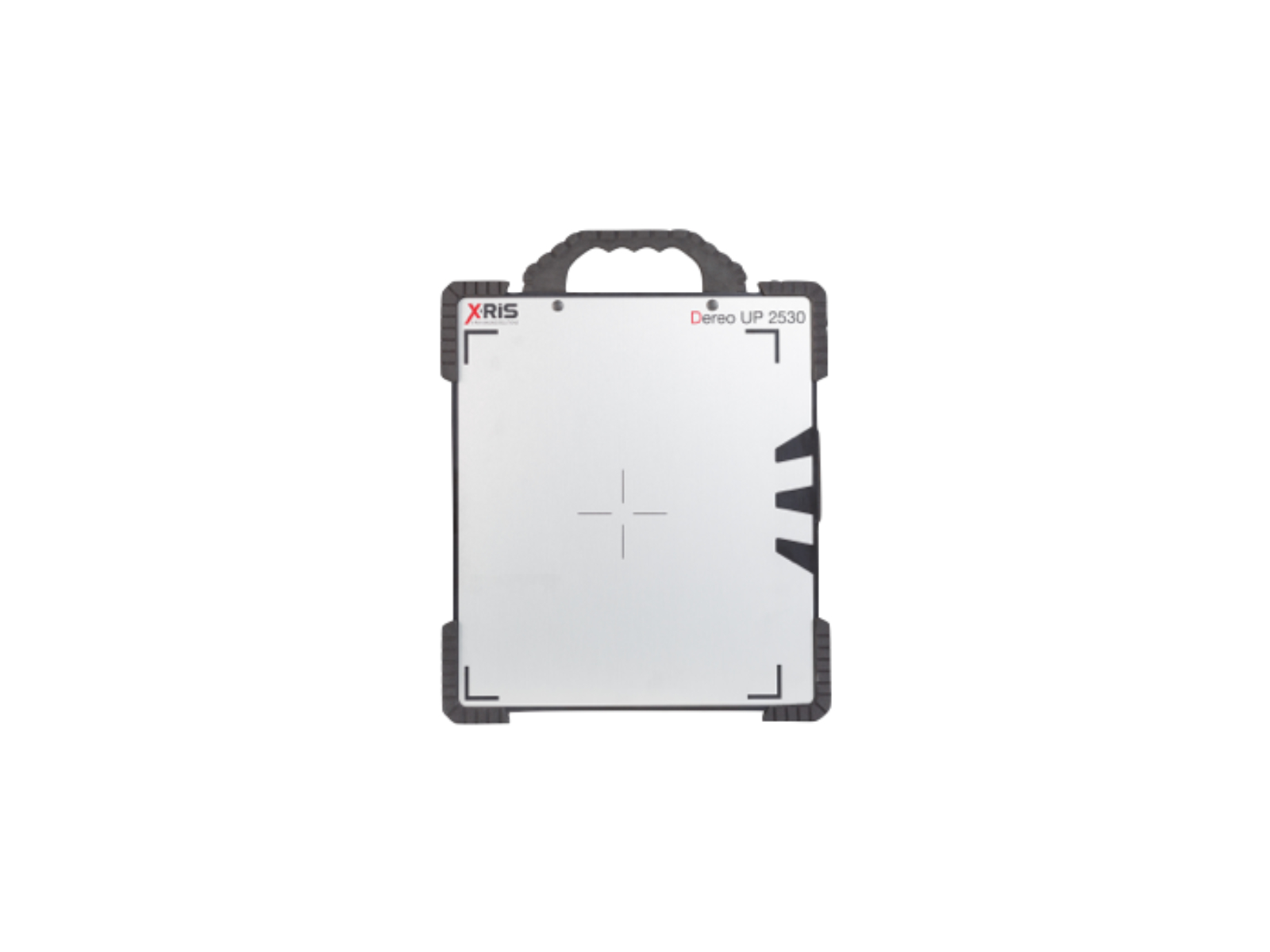

Ultra portable flat panel detector for quick inspection, maintenance operations and much more. Use the Dereo UP in a shielded cabinet or take it out at any time to use the Dereo UP as an extremely portable tool on site. Down to 2.8 kg.

Applications include:

Quality Control of large structures in Aerospace, Shipping Maintenance, Pipelines, Infrastructure, Railways and Ammunitions.
Periodic maintenance control
Material testing of Weldings, Castings, CUI and Composite Materials
Historical Assets eg Museums, Galleries, Laboratories and Universities

Download our brochure:
Dereo UP NDT (621.2KB)

Features

Quick set ups and initutive software
Ultra-portable
Robust designs with bumpers, military standard connectors, carry cases

Standard Kit

Dependant on application

Specification

	Dereo UP 2530	Dereo UP 3643
Technology	@-Si	@-Si
Active Area	25 x 30cm	36 x 43cm
Pixel	100μm	100μm
Grey Level	16bit	16bit
Dimensions	412 x 321 x 17mm	543 x 430 x 17mm
Weight (battery included)	2.8kg	4.0kg
