Ultrasonic
Audit 106
Our Audit range of thickness gauges provide operators with a combination of accuracy, robustness and simplicity of operation, across a very broad range of industry sectors and applications, often seems as essential tools in the kit for the Plant Maintenance Engineer or Engineering Surveyor.
Advantages of the Audit 106 include:
- Built in warning display eliminates risk of spurious readings
- 10 pre-set calibrations for commonly inspected materials
Overview

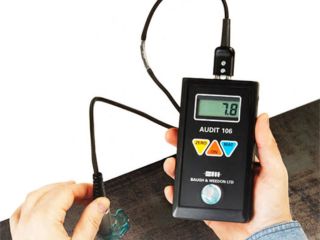

The Audit 106 is exceptionally tough, housed in a rigid hermetically sealed ABS case, with a front panel membrane ensuring excellent environmental protection. From pipelines to pressure vessels, tubes to tankers, castings to casings, boilers to bunkers, the Audit series is ideal an ideal on-site instrument to measure abrasion wear rates, rates of corrosion, aid in predictive maintenance scheduling and assess working plan without the need to shutdown.
Download our brochure:
Audit 106_Issue 2.pdf (413.8KB)
Features
- Standard DT25 probe supplied, with integral cable
- 6mm test block mounted in front panel
- “Zero” facility
- Measuring Range 1.5mm - 99.9mm in steel
- Resolution 0.1mm
- Approx 100hrs continuous use battery life
Standard Kit
- Audit 106
- DT25 probe (5MHz)
- 2 AA alkaline batteries
- Operator Manual
- Carry Case
- Ultrasonic Couplant Gel (125ml)
Options
- DT15 5 MHz probe, Subvis connector, with spring loaded pro holder, can inspect on curved surfaces down to a radius of 20mm
- D27 5MHz, side entry, Subvis connectors
Specification
| General | The Audit 106 is a microprocessor controlled precision instrument housed in a rigid injection moulded plastic case, with front panel membranes ensuring excellent environmental protection. |
|---|---|
| Display | 4 digit LCD |
| Range | 1.5mm to 99.9mm in steel |
| Resolution | 0.1mm |
| Accuracy | +- 0.1mm +- 1 digit, or +- 1%, whichever is greater |
| Batteries | 2 x AA alkaline cells, internally |
| Battery Life | Approx. 100 hours continuous use, equivalent to many weeks in practical situations |
| Low Battery | Displayed when approx 10 hours continuous use remain available |
| Auto Power Off | lnstruments automatically power off 60 seconds after last use |
| Display Retention | 5 seconds from probe lift off |
| Environmental Protection | Sealed to IP65 |
| Temp Range | Operation 5 to +55°C |
| Storage | -20°C to +70°C |
| Weight | 290 grams / 10.2 ounces |
| Dimensions | 151 x 82 x 33mm |
| Calibration | A106 Preset selectable programs for: 0 Steel 1 Stainless Steel 2 Alumrnium 3 Copper 4 70/30 Brass 5 SG lron 6 Flake lron 7 Perspex/Nylon 8 PVC 9 Polypropylene Zero Facility Available |
| Confidence Check | A 6mm thick test block, mounted on the front panel enables the operator to check at will that the instrument and probe are functioning satisfactorily |
| Validity of Data | A decimal point only display indicates that the probe work piece coupling is inadequate, or that an out of range measurement is being attempted |
