X-Ray
Dereo UP Security
The Dereo UP Security kit is the lightest and highest-end portable x-ray solution in the world.
In the security sector, hardware must be rugged, deployed with speed and easy to use. Each application has specific requirements and have different accessory needs e.g. backpack, tough shell etc. Several features such as panel size, penetration, wireless communication can be optimized to meet the needs of the field requirements.
Advantages of the Dereo UP Security include:
- All X-RIS systems work across a broad scope of applications
- High resolution X-Ray imaging
- No consumable needed
Overview

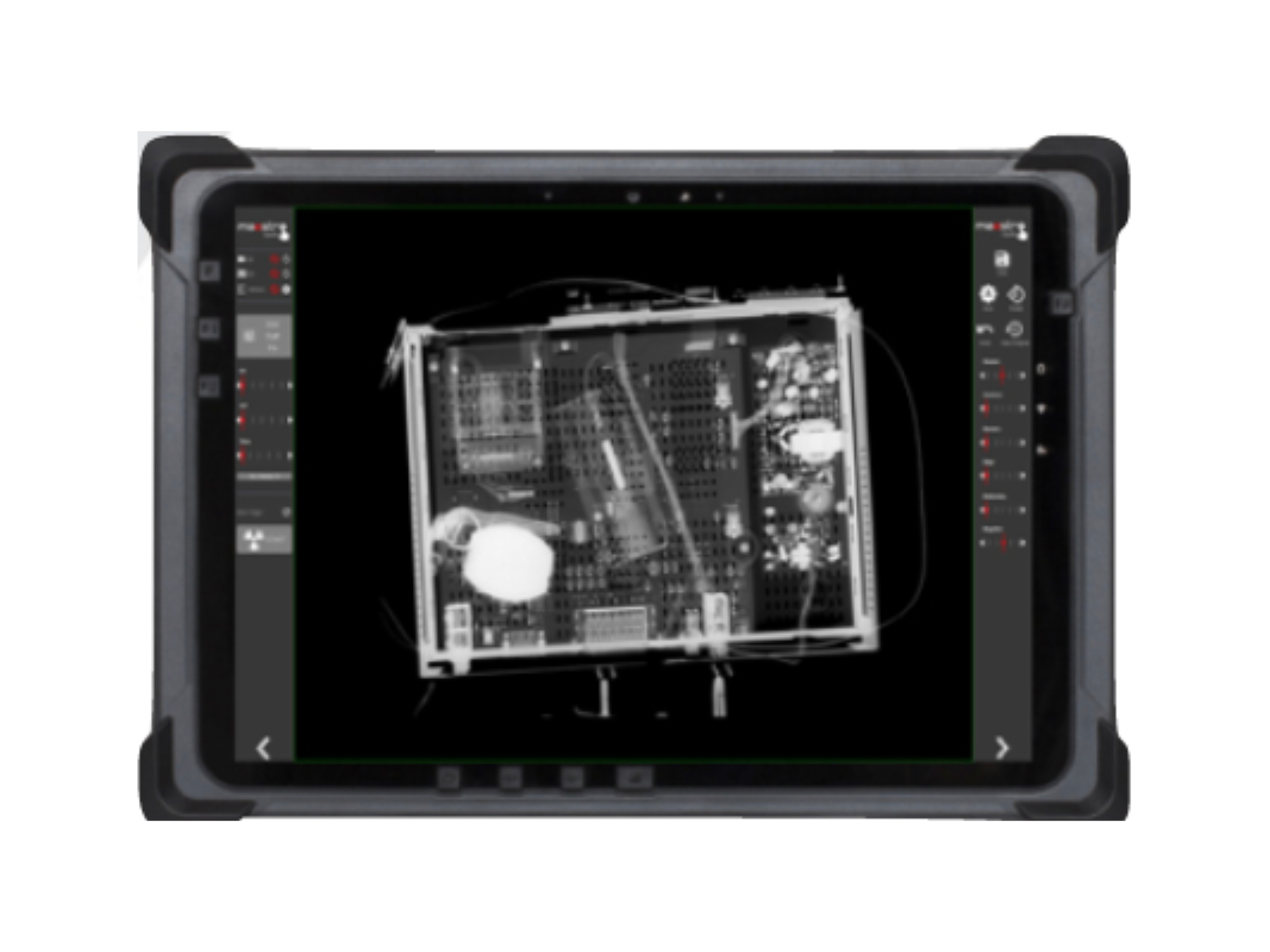

Dereo UP is a portable digital X-Ray system for indoor and outdoor X-Ray inspection jobs. Can be partnered with Bipods and tripods for on site work, various touchpads and laptops are available depending on the application environment.
Applications include:
- Inspections of parcels, cars (doors, trunk, tyres) pieces of luggage, walls
- Customs & Border control
- Counter Surveillance
- Forensic applications
- Special Forces
- EOD & IED
- VIP Security
MAESTRO Software features lend themselves perfectly to these onsite/real-time applications with the following functions:
- Zoom in / out, screen adjustment, rotation, horizontal and vertical flip, cropping, etc
- Black and white reversal
- Annotations
- Real time magnifier
- Real time filters (Defect, Contrast, Edge, Noise reduction)
- Smart measurement tools
Download our brochure:
Dereo UP Security (644.6KB)
Features
- Real-time X-Ray pictures for urgent image acquisition and analysis. Board scope of application set ups
- Maestro intuitive software, quick set ups
- High sensitivity - can measure materials ranging paper through to several mm Fe
- Real-time magnifier
Standard Kit
- Dependant on application
- IP66 Carry Cases
Options
- GemX constant potential X-Ray generator
- Wireless modules
- IP66 carrying case
- Backpack.
Specification
| Dereo UP 2530 | Dereo UP 3643 | |
| Technology | @-Si | @-Si |
| Active Area | 25 x 30cm | 36 x 43cm |
| Pixel | 100μm | 100μm |
| Grey Level | 16bit | 16bit |
| Dimensions | 412 x 321 x 17mm | 543 x 430 x 17mm |
| Weight (battery included) | 2.8kg | 4.0kg |
