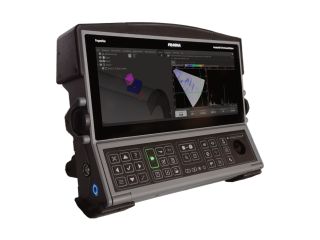

PragmaFlex
The PragmaFlex platform marks a milestone in non-destructive testing history as it is the first ever instrument designed with NDE 4.0 principles in mind, aiming at the integration of tools, test methods and digital technologies, this sets the stage for new breakthroughs in non-destructive testing. Ideal for Manufacturing, MRO, Field Inspections, Procedure Development, Training and R&D sectors.
Seamless integration with market-leading 6DOF positioning devices like Hexagon’s CMM arms and laser trackers for full 3D data acquisition. Supports Microsoft Hololens for an immersive user experience and allowing remote inspection capability. Multi-Modality: Able to support one or two of several modalities to choose from: UT, PAUT, ECT, ECA, etc.
Overview
Wide Bright Screen: Ultrawide 12.3” WXGA screen with a 21:9 aspect ratio, with best-in-class automotive-grade brightness and viewing angle.
Dual Keypad: Outer silicone rubber keypad with backlight featuring tactile feedback / ideal for harsh conditions, plus inner QWERTY keyboard enabling rapid entry of Files Names, Report Content and more.
Touch-Enabled: Capacitive touch technology under scratchproof chemically-enhanced glass with high tolerance to UT couplant, dirt and other contaminants.
Powerful Computer Platform: Well-balanced CPU in terms of power consumption, performance, GPU capability and RAM, similar to high-performance engineering laptops.
Multiple Peripherals: Multiple connectors to interface with: 4x USB type A, 1x HDMI, 2x Gigabit Ethernet, 1x Audio 2.5mm Headphone+mic, 1x Power In/Out, 1x GPIO.
Compact: CNC-machined aluminium enclosure, for durability and heat dissipation.
Download our brochure:
PRG-DataSheet-PragmaFlex-EN-Letter-230806.pdf (5.5MB)
Specification
| Computer System | |
| Processor | 2 GHz Quad-Core, Four threads |
|---|---|
| RAM | 8 GBytes, LPDDR4 |
| On-Board Storage | Removable SSD drive, 256 GBytes (more in options) |
| USB Ports | 4 x USB 3.0 (Type A) |
| Graphics | Intel UHD Gen 11, 4GB memory |
| Operating System | Windows 11 IoT Enterprise |
| Video Output | HDMI 2.0b |
| Network | 2 x Ethernet 10/100/1000 |
| Audio Output | 2.5mm (1/8in) stereo mini-jack incl microphone |
| Wireless | Embedded WiFi 802.11 AC, 2.4G 7 5G. Embedded Bluetooth 5.2 |
| Keypads | |
| Outer Keypad | Integral silicone rubber membrane 29 tactile feedback keys, with backlight |
| Inner Keypad | Membrane switch 55 tactile feedback keys |
| Joystick | For 1- or 2-axis crawler/scanner control |
| Jog Speed Indicator | LED indicator of the speed level for scanners/robots |
| Power Status LEDs | 2x Battery status 1x DC input 1x Power ON/OFF |
| Display | |
| Display Size | 31.2 cm (12.3 in.) diagonal 292 x 109 mm |
| Panel Type | IPS |
| Touchscreen | Active PCAP, multi-touch 10 gestures |
| Protection | Chemically enhanced scratch-proof glass (CEG) |
| Power Supply | |
| Battery Type | Li-Ion 14.4V |
| Number of batteries | 2 slots, hot-swappable |
| Battery Life | Up to 8 hours with 2 batteries |
| Power pack | AC/DC 24 VDC, max 96 watts |
