Magnetic Flux Leakage

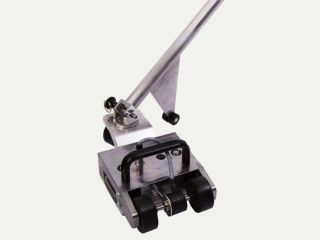

TruFlux Mini
The TruFlux Mini is a manual Industrial Detail Tank Floor Scanner and is the latest addition to the Baugh and Weedon tank floor scanning range developed to deliver to the operator a full package for a complete tank floor scan solution.
Advantages of the TruFlux Mini include:
- Inspects though coatings, maximum thickness 3mm* *(see datasheet for full details)
- Incredibly economic, improves R.O.I
- Weight 8kg (17.5lbs), including handle
- USB connectivity means the Truflux effectively works as a simple "plug and play" unit
- Inspection results overlay feature, helps with predictive analysis
- Off-the-shelf battery technology
Overview
TruFlux Mini has the capability of scanning the edge of a floor up to the tank shell wall, into corners and under fixed pipework increasing inspection coverage. Data and defect mapping can be merged with the main sets of scan data acquired by the main inspection data gathered by the TruFlux.
Download our brochure:
Truflux Mini_Iss5.pdf (519.2KB)
Truflux Mini & Main Truflux MFL unit
Truflux Mini Above

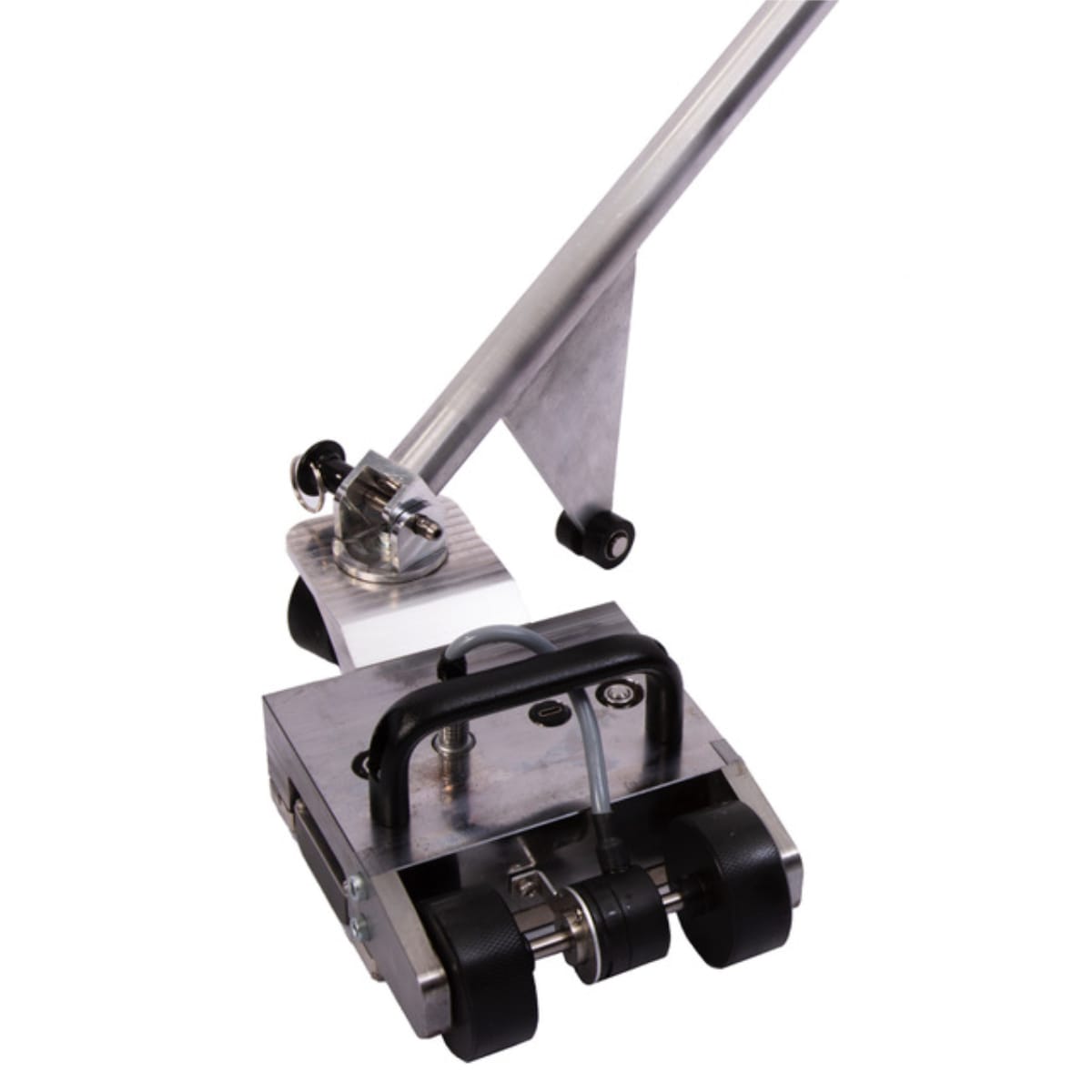

TruFlux Mini Foot, Wheels and Stand rest
Truflux Mini Duo
Features
- Manual tank floor scanner, scan width 150mm (6”)
- Weight 8kg (17.6lbs), including handle/tablet
- On-board encoder for defect location
- Robust design features, as per TruFlux
- Thickness Range 6-12mm (0.2 - 0.472”)
- Height clearance: 105mm (4.1”)
Standard Kit
- TruFlux Mini MFL Tank Floor Scanner
- Transit Case
Options
- Tablet
-
TruFlux Mini Spares Kit (F-FKFSTRUFSP3): without MagnaCheck 3D
-
TruFlux Mini Spares Kit (F-FKFSTRUFSP4): with MagnaCheck 3D
Specification
| Principle Of Operation | Magnetic Flux Leakage |
|---|---|
| Detection | 24 Hall Effect sensors |
| Scan Width | 150mm |
| Method of Propulsion | Manual |
| Speed | Manual (max 500mm/s) |
| Thickness Range | 6-12mm (0.236"-0.472") (*see datasheet for full details) |
| Test Through Coatings | Yes |
| Maximum Coating Thickness | 3mm (0.118") (*see datasheet for full details) |
| Maximum Sensitivity | 20% |
| Auto-Stop | No |
| Power Requirements | 5V from USB of laptop/tablet |
| Transit Case | Meets IATA requirements for transporting magnetisable material |
| Operating Weight | < 3kg (not including tablet) |
| Real Time Analysis | Yes |
| Real Time Averaging | Yes |
| Real Time Digital Signal Processing | Yes |
| Freeze Screen Alarm | No |
| Linear Resolution | 0.5mm |
| Speed Compensation Algorithm | Yes |
| Sensors | 24 Channels x 0.5mm |
| Scan Length | Unlimited |
| Scan Plate End Zones | Yes |
| Adjustable Sensitivity Range | Yes |
| Fully dampened magnetic contact | No |
| Scan Length Alignment (whilst in magnetic contact) | Yes. The scan track can be fully aligned when the magnet is in contact with the plate, alleviating the need to break contact if track alignment was not achieved |
