Ultrasonic
Shearwave Angle
Shearwave or Angle Probes are more commonly used for inspection of welds in fabricated parts, but are also used where standard Compression Probes cannot be used (e.g. complex Geometric shapes).
All of the probes available are designed and manufactured in house by a team with a collated experience of nearly 70 years, guaranteeing the highest possible quality, timely deliveries and competitive prices.
If you have a special application that requires a non-standard probe, please contact us and we will be happy to assist you.
Overview
Our new MA probes, constructed using with Piezocomposite material, deliver improved overall probe performance especially due to the gain high sensitivity in combination with well damped signals. These composite transducers have shown to have a 10dB higher amplitude than the standard piezo material, additionally the composite probe has a shorter pulse when compared with the standard probe. These are now available in 2MHz and 4MHz frequencies in 45, 60 and 70 degree angles.
All of these probes are available in 8mm x 9mm rectangular crystals on request.
Twin Crystal Angle Beam transducers available on request.
Download our brochure:
UT Transducers (242.6KB)

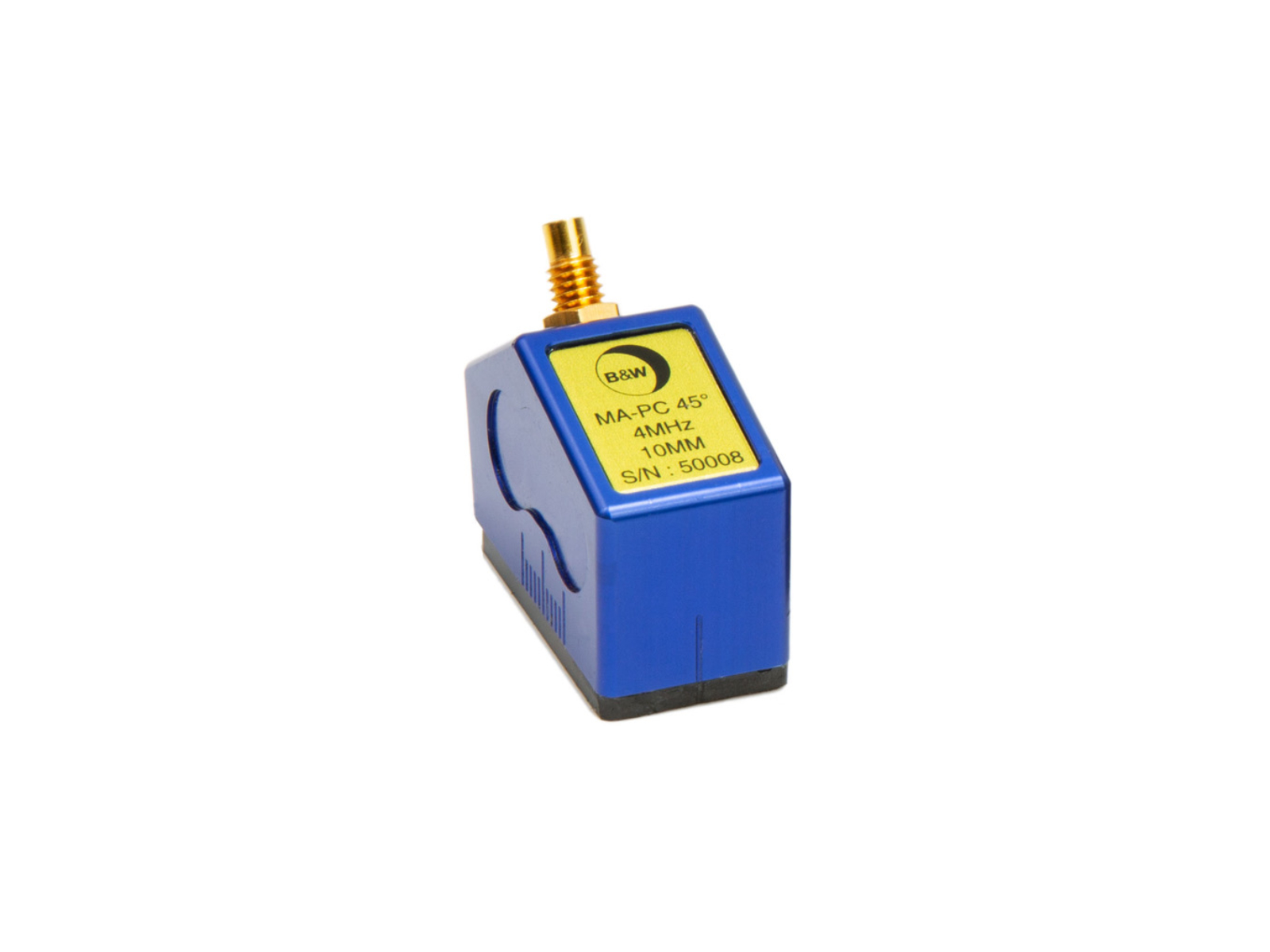

45 degree

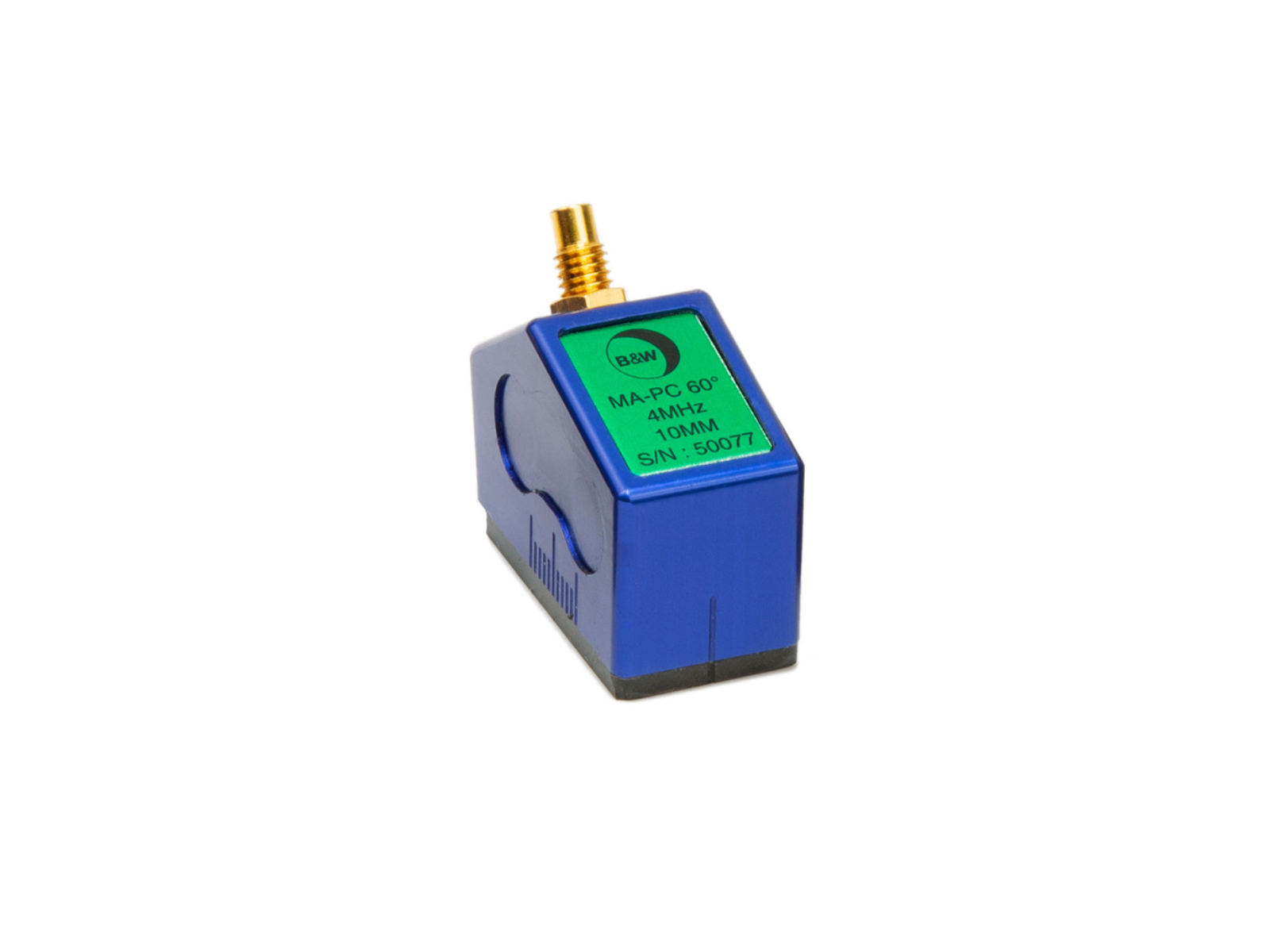

60 degree

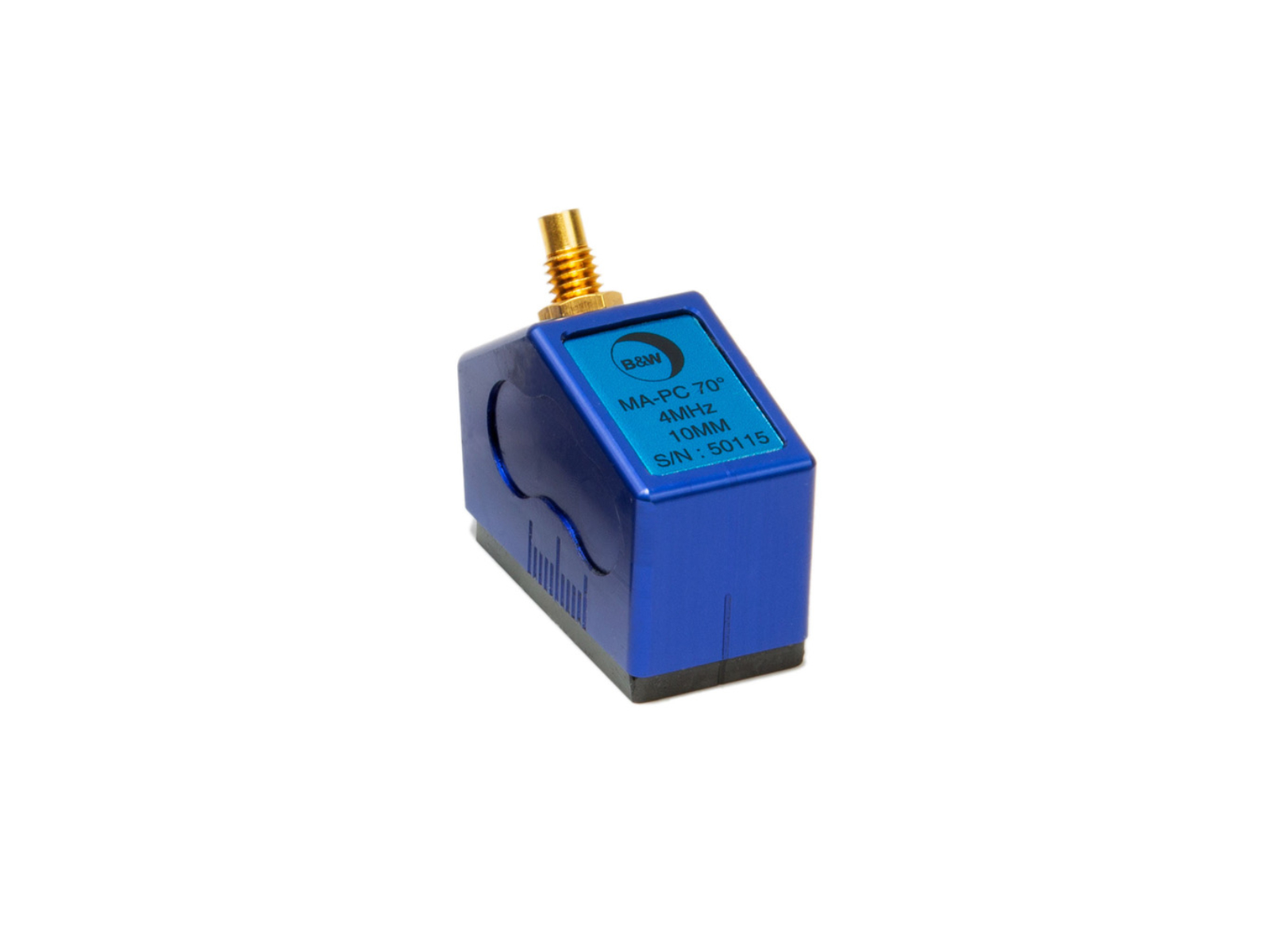

70 degree

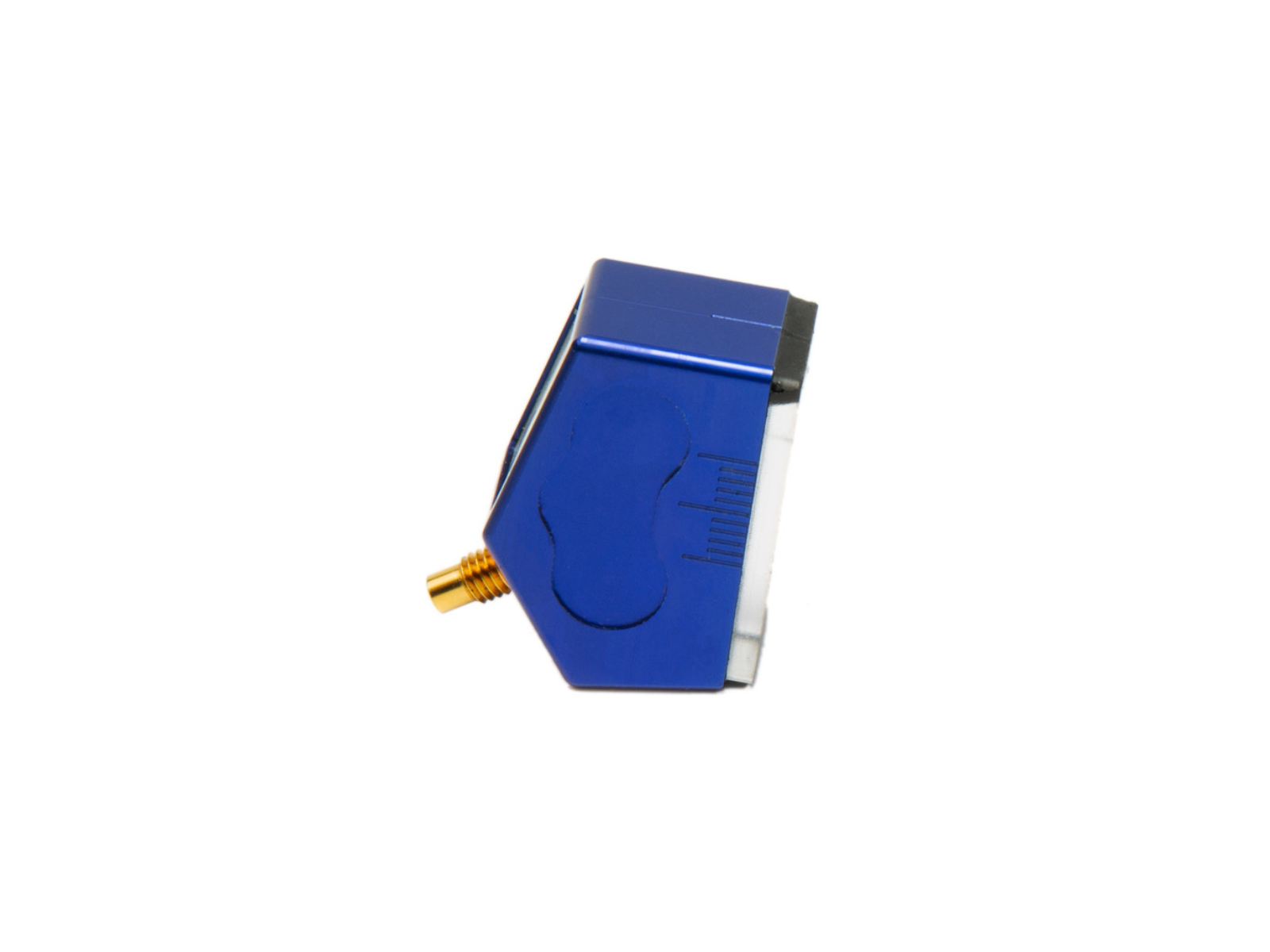

Side view
Specification
Standard MA
Description (Angle/MHz/Connector) | Part No. |
---|---|
MA 45/2Mhz Subvis | 100021 |
MA 45/4Mhz Subvis | 100001 |
MA 60/2Mhz Subvis | 100022 |
MA 60/4Mhz Subvis | 100002 |
MA 70/2Mhz Subvis | 100023 |
MA 70/4Mhz Subvis | 100003 |
MA Probes (Rectangular Crystal)
Description (Angle/MHz/Dims/Connector) | Part No. |
---|---|
MA 45/2MHz 8x9mm LEMO | 300001 |
MA 60/2MHz 8x9mm LEMO | 300002 |
MA 70/2MHz 8x9mm LEMO | 300003 |
MA 45/4MHz 8x9mm LEMO | 300004 |
MA 60/4MHz 8x9mm LEMO | 300005 |
MA 70/4MHz 8x9mm LEMO | 300006 |
MA Composite Probes
Description (Angle/MHz/Connector/Material) | Part No. |
---|---|
Sub Composite | |
MA 45/2Mhz Sub Composite | 500004 |
MA 60/2Mhz Sub Composite | 500005 |
MA 70/2Mhz Sub Composite | 500006 |
MA 45/4Mhz Sub Composite | 500001 |
MA 60/4Mhz Sub Composite | 500002 |
MA 70/4Mhz Sub Composite | 500003 |
LEMO Composite | |
MA 45/2Mhz LEMO Composite | 500010 |
MA 60/2Mhz LEMO Composite | 500011 |
MA 70/2Mhz LEMO Composite | 500012 |
MA 45/4Mhz LEMO Composite | 500007 |
MA 60/4Mhz LEMO Composite | 500008 |
MA 70/4Mhz LEMO Composite | 500009 |
