Terahertz NDT
T-Ray 5000 MSL5201

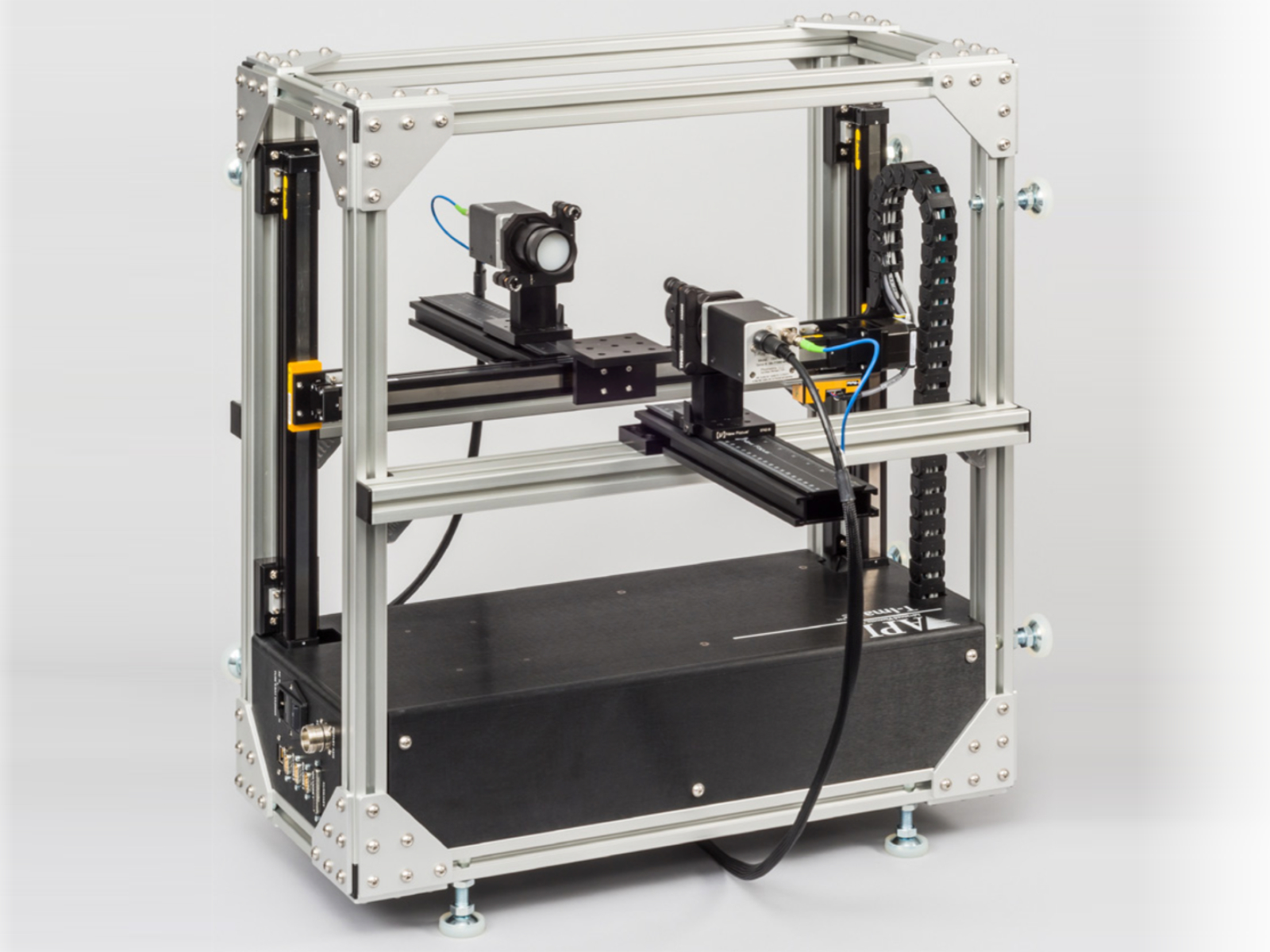

The T-Image scanner is a portable ‘C-scan system’ suitable for laboratory or field work. It is a highly versatile design which can be used vertically or horizontally, used in reflection or through transmission mode or used in conjunction with an external rotation support / motor to inspect cylindrical components.
Advantages of the T-Ray 5000 include:
- Perfect for field work.
- Built to operate upright or prone.
- Multiple lens configurations available.
- Easy maintenance.
(Related Products: BondCheck, Teledictor)
Overview
The MSL5201 can move at speeds up to 150 mm/sec and can provide step resolutions below 30 microns. The motors are integrated with the required amplifier and encoder to allow high quality images to be acquired at speeds up to 1000 pixels per second. The T-Image has an embedded motion controller that is configured by software running on the Terahertz Control Unit.
Applications include: Time domain reflection tomography, Non-destructive materials inspection, package inspection, Semi-conductor wafer inspection, medical and biological imaging research, remote threat detection, homeland security research.
Typical Configuration:
Terahertz Controller with T-Ray ® Basic, T-Gauge®, and T-Ray® Imaging software.
External display, mouse, keyboard or network link to PC.
Umbilical (2, 5, 10, or 30m).
Transmitter.
Receiver.
Power and Network cables.
Download our brochure:
T-Ray 5000 MSL5201 (506.1KB)
Features
- Fibre coupled to allow easy movement
- Image resolution to 100 microns
- Built to operate upright or prone
- Easy to use imaging software available
- Transmission or reflection images
- Multiple lens configurations available
Specification
| Scan range | 30 cm | |
|---|---|---|
| Minimum step | < 30 microns | 20 - 90% RH non-condensing |
| Voltage Requirements | 110/240 VAC | 50/60 Hz self-sensing |
| Size (W x H x D) | 66 x 70 x 33cm (26" x 27.5" x 13") | |
| Weight | 21kg (47lbs) | Reflection configuration without sensor |
