Accessories

MPI Yoke Battery

The ideal portable battery pack partner for MPI inspection yokes.

Advantages of the MPI Yoke Battery Pack include:

2 Power Source options: AC220-240V 50/60Hz or AC110V 50/60Hz.
Weight 3.85kg (8.5lbs) (154Wh), 3.25 kg (7.0 lbs) (96Wh)
Optional Digital Panel Battery Monitor

Overview

This power pack has been developed as an alternative power source for the operator on the go. Unlike other portable power supplies, these power packs output a true AC sine wave, exactly like mains voltage, delivering enhanced performance in the field, with approximately 8 hours of intermittent use.

96Wh / 154Wh Option

Whether it be easy shipping or longevity, our batteries can be fitted with the optimal choice of power option to suit the application

Download our brochure:
MPI Battery Pack_Issue 2.pdf (379.9KB)

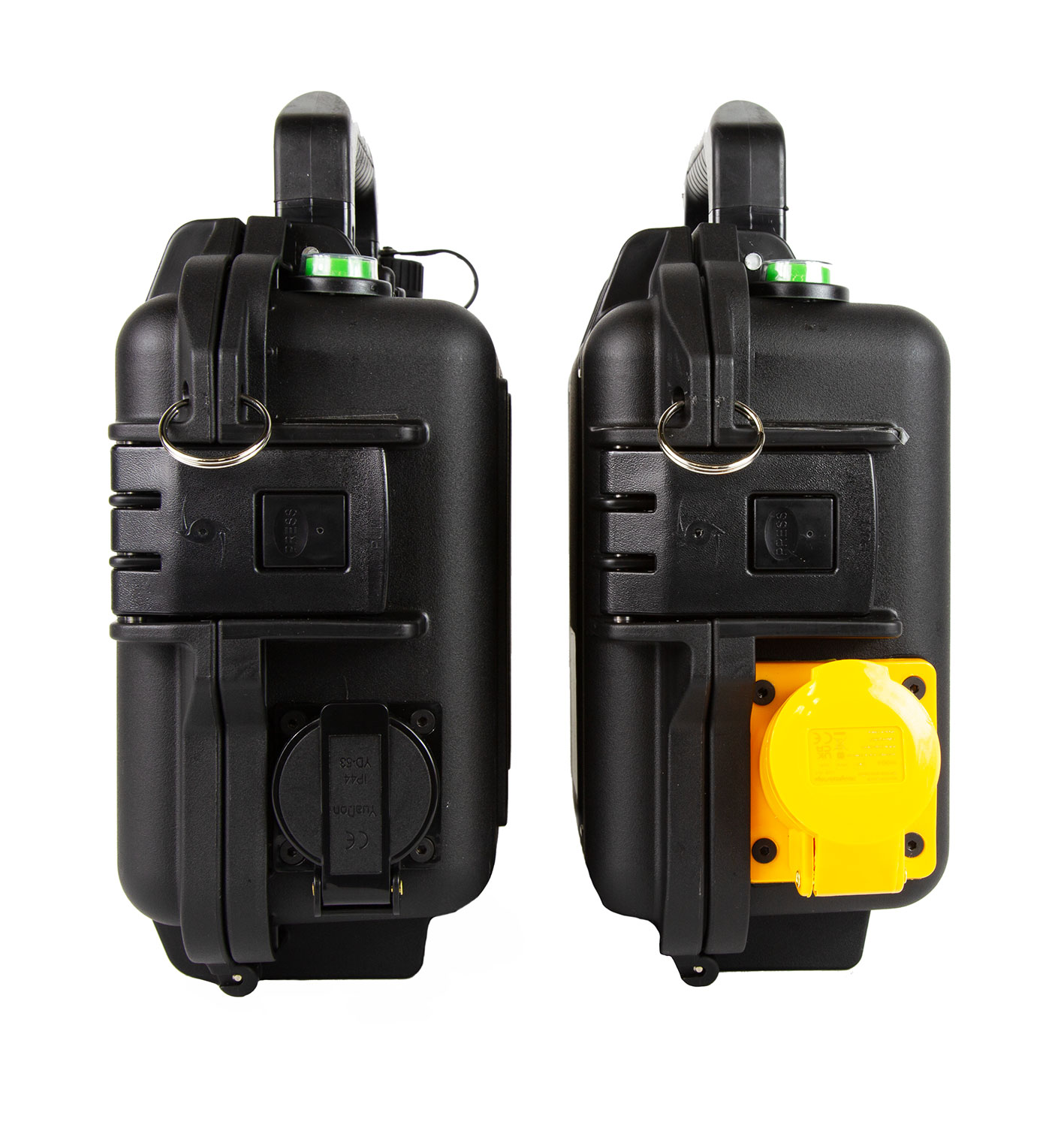

MPI Battery Pack Options

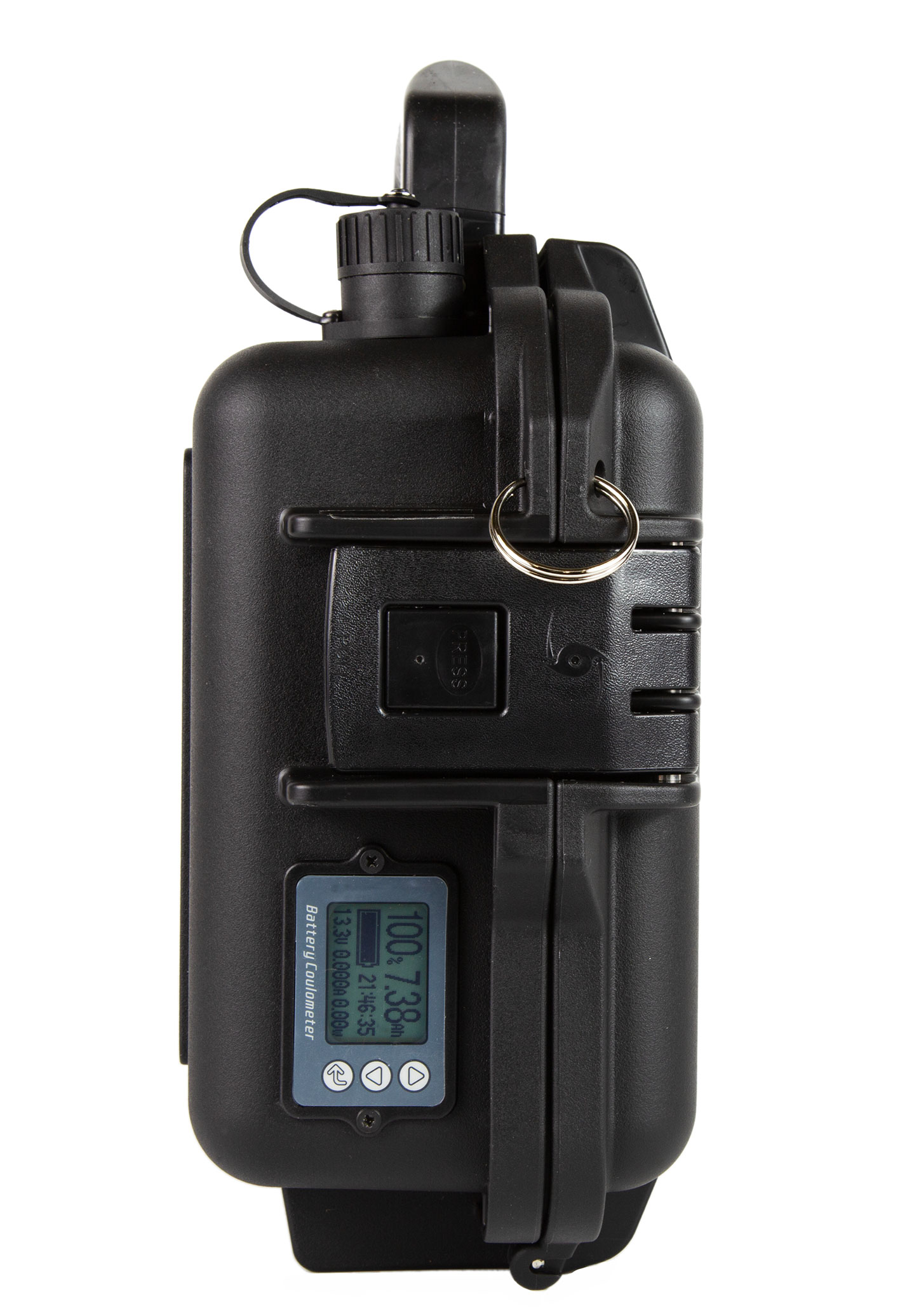

Battery Pack with optional digital battery monitor

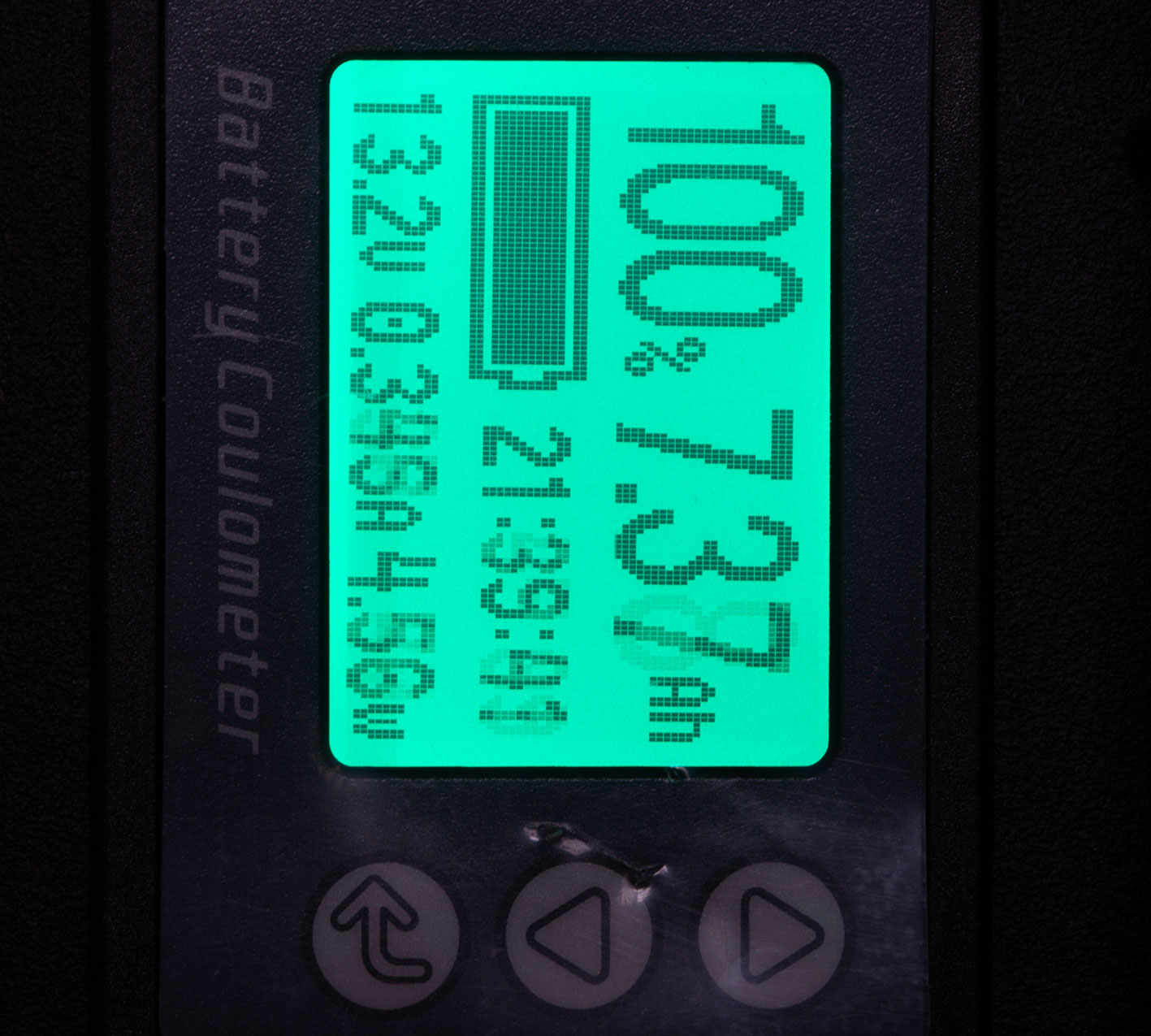

Battery monitor digital screen

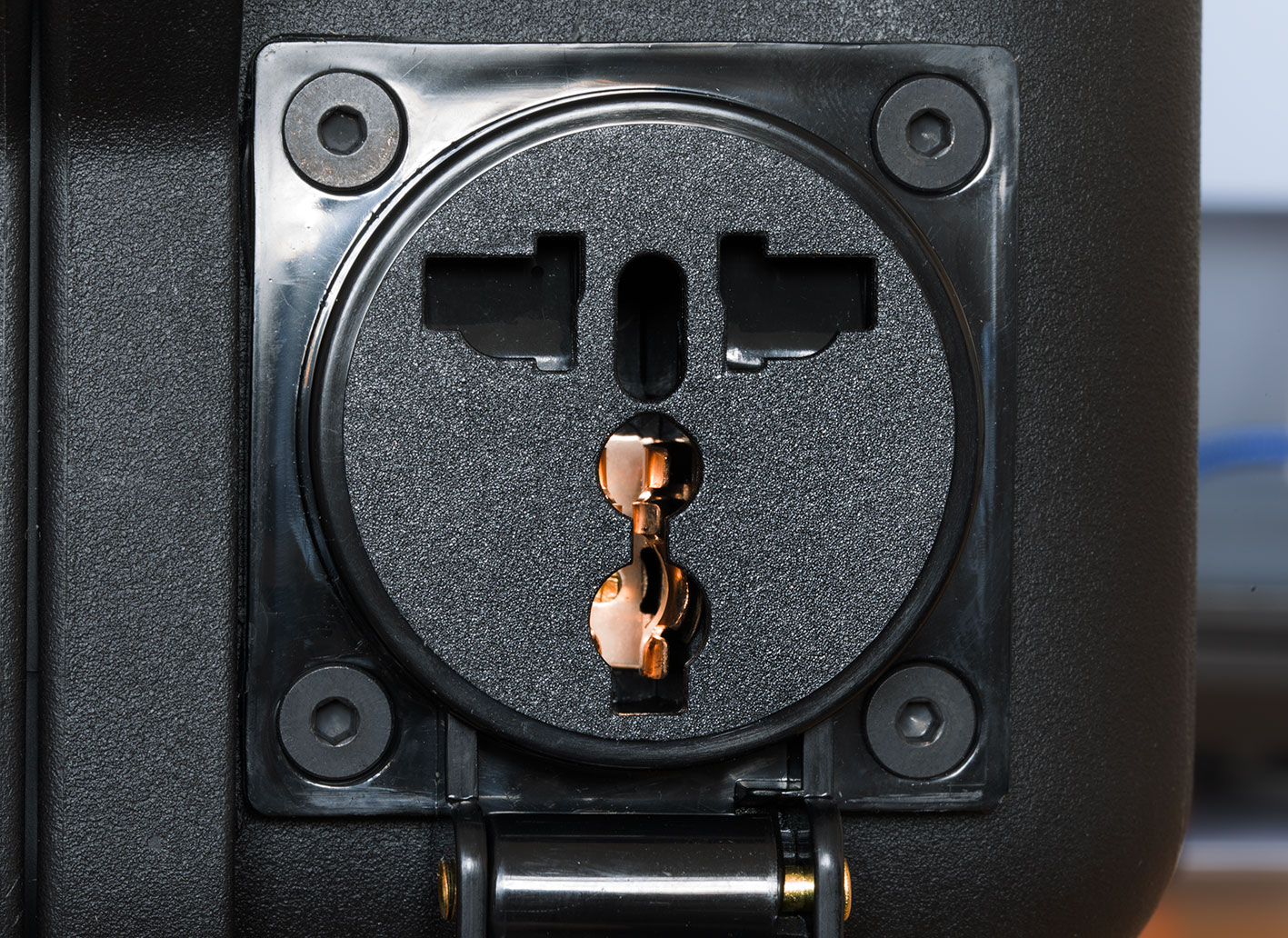

Adaptable connectivity across a variety of 220V plugs

Features

Rugged, robust casing
Lightweight 3.25 -3.85kg (7.0-8.5lbs)
Meets IP54
Low Battery indicator alarm
Optional Battery Monitor

Standard Kit

MPI Battery Pack
Detachable Power Cable

Options

110V or 220V Battery packs

Specification

Working Temperature	5°C - 35°C (<50% R.H.)
Storage Temperature	-10°C - 45°C (<80% R.H.)
Output	PP-110 110VAC pure sine wave, max 5A PP-230 230V modified sine wave, max 3.7A
Power	Internal LiFePO4 battery, 12hrs use (154Wh) or 8hrs use (96Wh). Use depends on type of electromagnet and intensity.
Low battery indicator	Power pack has on-board “beep” alarm, which sounds when battery almost empty. Always recharge as soon as possible.
Dimensions	32cm (l) x 13cm (w) x 25 cm (h) 12.6in (l) x 5.1in (w) x 9.8in (h)
Weight	154Wh 3.85kg 96Wh 3.25kg
Protection Class	IP54
Charging Cycles	Up to 2000 to 80% capacity, depending on the type of electromagnet, temperature and use.
